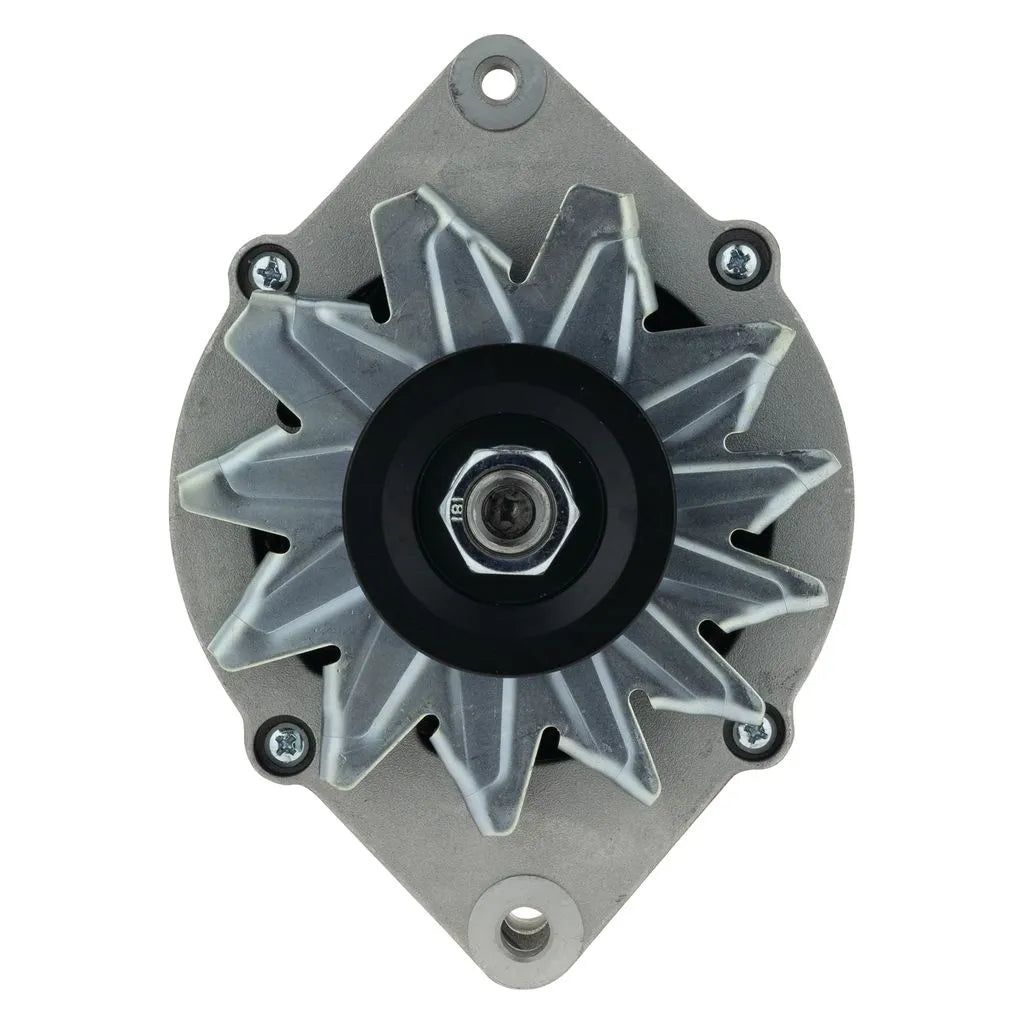

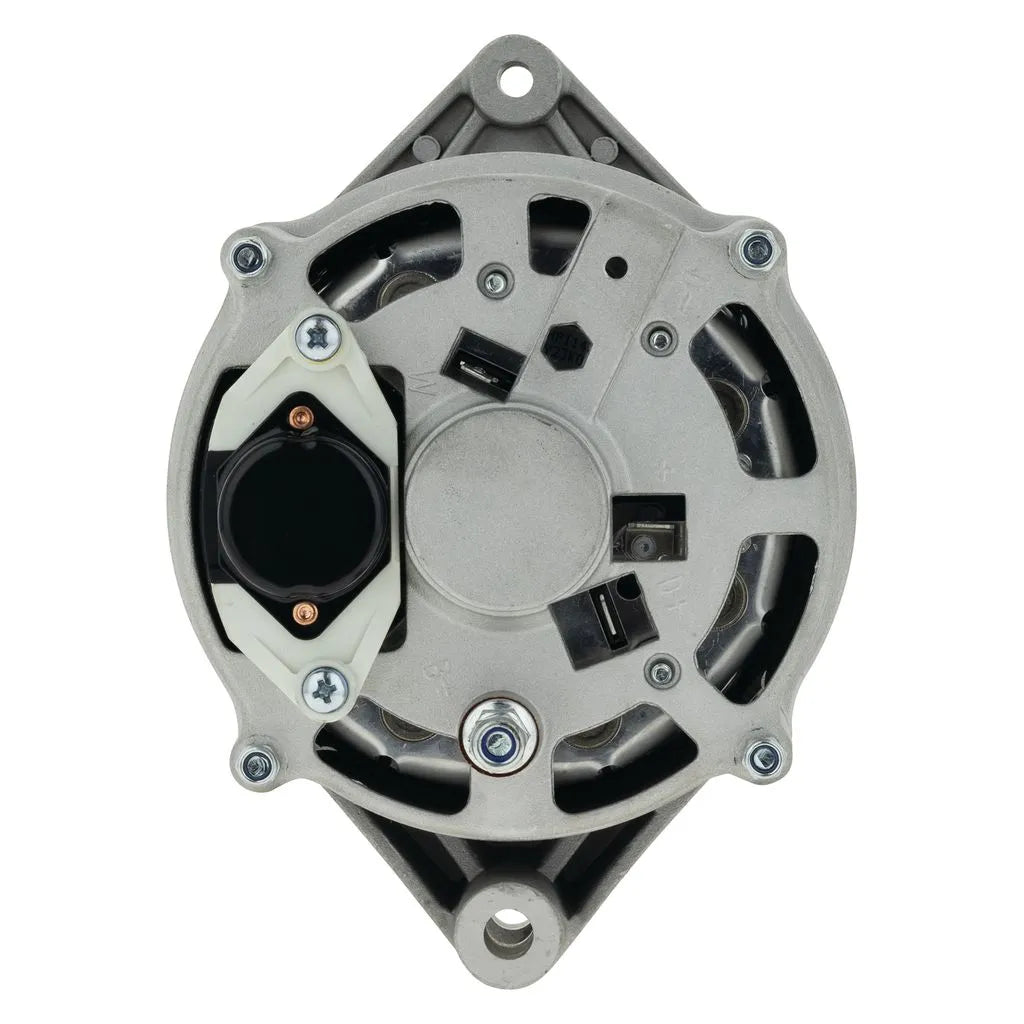

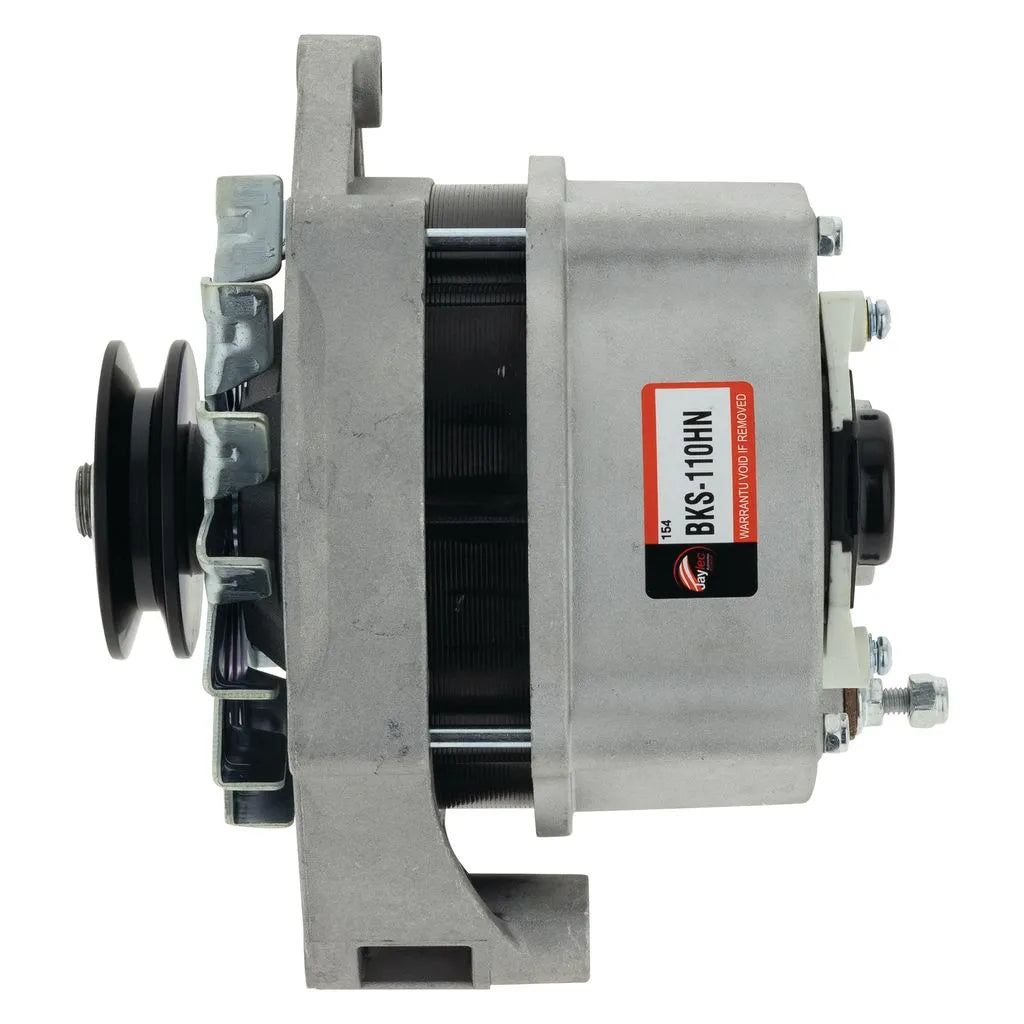

4 Phase Alternator and Stator
NSK Bearings
Anti Vibtaion Protection
| Voltage | 12V |
| Amperage | 110A Hot (96c) 126A Cold (40c) |
| Mount Leg ID | M8 |
| C-C Mounts | 170mm |
| Hole ID Top | 10mm |
| Hole ID Bottom | 56mm |
| Shaft Size | 17mm |
| Pulley Type | SINGLE "A" |
| Pulley Belt Width | |
| Pulley Grooves | 1 |
| Pulley Diameter | 64mm |
| Regulator Type | INTERNAL |
| Series | K1 |
| Connections Plug # | |
| Terminals | B+, D+, W |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 6.5kg |
