Self Exciting/ No need to add to wiring Plug
NSK BEARINGS
| Voltage | 12V |
| Amperage | 132A (Hot) 148A (Cold) |
| Mount Leg ID | 51mm |
| C-C Mounts | 157mm |
| Hole ID Top | M8 |
| Hole ID Bottom | 10mm |
| Shaft Size | 17mm |
| Pulley Type | 6PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 6 |
| Pulley Diameter | 56mm |
| Regulator Type | INTERNAL |
| Series | C1S30 |

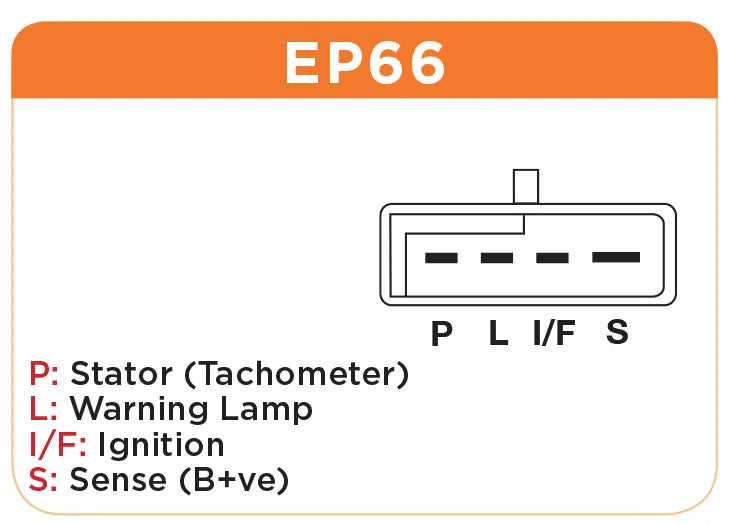

| Connections Plug # | EP66 |
| Terminals | B+, P (TACHO), L (WARNING LIGHT), I/F, S (BATTERY SENSE) |
| Excitation | INTERNAL |
| Ground | NEGATIVE |
