| Voltage | 12V |
| Amperage | 240A |
| Mount Leg ID | 76mm |
| C-C Mounts | 175mm |
| Hole ID Top | M8 |
| Hole ID Bottom | 11mm |
| Shaft Size | 17mm |
| Pulley Type | 6PV, FIXED |
| Pulley Belt Width | |
| Pulley Grooves | 6 |
| Pulley Diameter | 56mm |
| Regulator Type | INTERNAL |
| Series | |

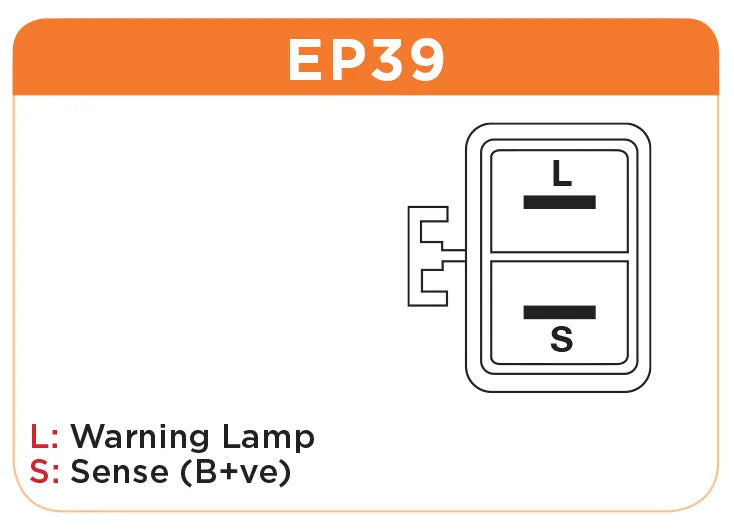

| Connections Plug # | EP39 |
| Terminals | B+, L, S |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
