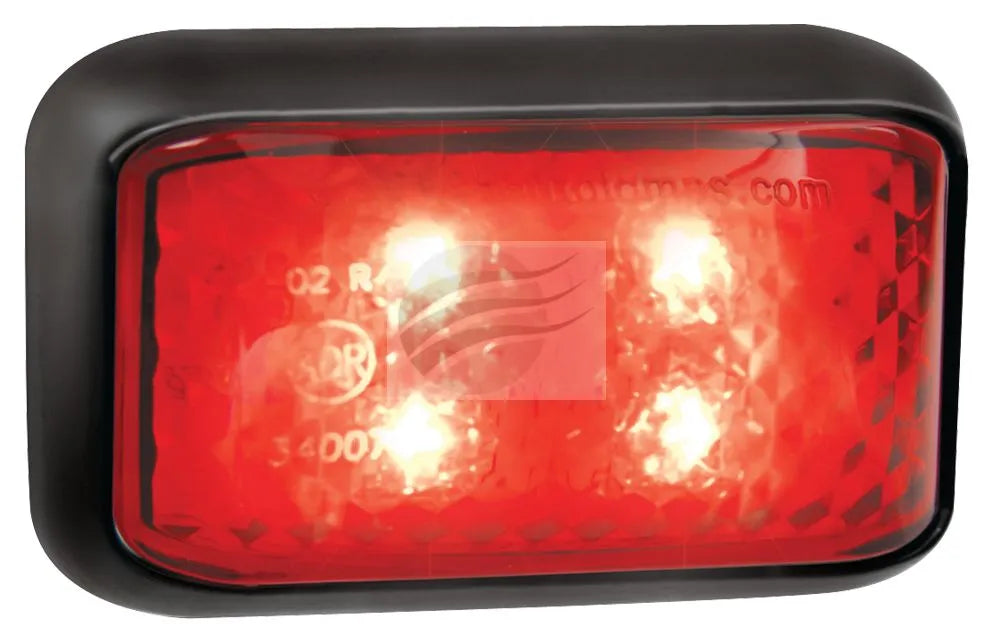

35 Series LED Rear End Position Outline Marker Lamp 12/24 Volt
Red Illumination
4 x High Intensity White LED's
Red Hardened Acrylic Lens with unique Hexagonal lens pattern
Black Plastic Housing with mounting screws included
Surface Mount- low mounting depth for easy installation
Tinned Copper Pre-wired 400mm Lead
Sealed against Dust and Moisture
0.12amps at 12 Volt and 0.07amps at 24 Volt Current Draw
ADR 49/00 Rear Position Lamp specifications approved- CRN 34007
Refer to ADR 13/00 for mounting instructions
Blister Qty: 1
5 Year Warranty
Spare Parts:-
35BB Black Housing
35BC Chrome Housing
| Colour | Red |
| Type | LED |
| Shape | Rectangular |
| Voltage | 12/24V |
| Watts | Other |
| Beam Type | Flood |
| No. of LED | 4 |
| Mount | Surface |
| Width (mm) | 58 |
| Height (mm) | 35 |
| Depth (mm) | 21 |
