Off Volts: 12.7 Volts. On Volts: 13.2 Volts.
Maximum Inrush Rating: 400amps.

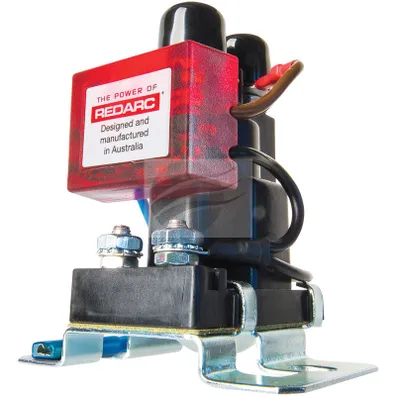

Microprocessor-controlled Battery Isolator designed for use in multi-battery applications as a solenoid priority
system to protect the start battery from excessive discharge whilst allowing the auxiliary
battery to supply non essential loads. Ensures a low charge in the secondary battery won't drain the primary battery.
Silver Contacts- Cooler operating temperature- engaged draws 0.15amps- Fault indication- Red LED Light for solenoid activation- fully surge protected.
Applications: 4WD and Commercial vehicles with dual battery setups.
Approximate Weight: 200g.
POWER SAVING TECHNOLOGY
The battery isolator is primarily used in 4WD and commercial vehicles and incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features a low standby current draw and sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.
FEATURES
- Overmould design
- Compact in size and easy to install
- Silver contacts for longer life and suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
| Voltage | 12 Volt |
| Amperage | 100amp |
